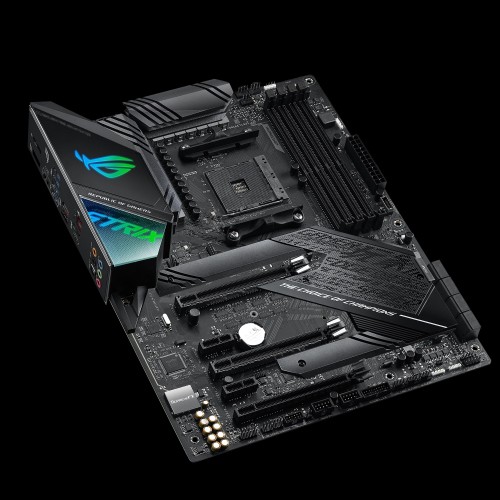

AMD X570 ATX gaming motherboard with PCIe 4.0, Intel Gigabit Ethernet, 14 power stages, dual M.2 with heatsinks, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB lighting

AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen™ processors to maximize connectivity and speed with up to two M.2 drives, USB 3.2 Gen2 and AMD StoreMI

Aura Sync RGB: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 GRB headers

Optimal Power Solution: 12+2 power stages with ProCool II power connector, alloy chokes and durable capacitors to support multi-core processors

Comprehensive cooling: Active chipset heatsink, MOS heatsink with 8mm Heatpipe, dual onboard M.2 heatsinks and a water pump + header

Gaming connectivity: Supports PCIe 4.0, HDMI 2.0, DisplayPort 1.2 and features dual M.2 and USB 3.2 Type-A and Type-C connectors

Gaming networking: Intel Gigabit Ethernet, ASUS LANGuard and GameFirst

5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor-made for your rig

Gaming audio: High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action

Easy DIY: ROG-patented pre-mounted I/O shield, ASUS SafeSlot, ASUS Node connector and BIOS Flashback™ for a friendlier building experience

3rd Gen AMD Ryzen™ Processors

4 x DIMM, Max. 128GB, DDR4 4400(O.C) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3600(O.C.) / 3400(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz Un-buffered Memory *

2nd Gen AMD Ryzen™ Processors

4 x DIMM, Max. 128GB, DDR4 3600(O.C.) / 3400(O.C.) / 3200(O.C.) /3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz Un-buffered Memory *

2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors

4 x DIMM, Max. 128GB, DDR4 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz Un-buffered Memory

Dual Channel Memory Architecture

 Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).


Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors

Multi-VGA output support: HDMI/DisplayPort ports

Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz

Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz


3rd and 2nd Gen AMD Ryzen™ Processors

Supports NVIDIA® 2-Way SLI® Technology

Supports AMD 3-Way CrossFireX™ Technology

2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors

Supports AMD 2-Way CrossFireX™ Technology

3rd Gen AMD Ryzen™ Processors

2 x PCIe 4.0 x16 (x16 or dual x8)

2nd Gen AMD Ryzen™ Processors

2 x PCIe 3.0 x16 (x16 or dual x8)

2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors

1 x PCIe 3.0 x16 (x8 mode)

AMD X570 chipset

1 x PCIe 4.0 x16 (max at x4 mode) *1

2 x PCIe 4.0 x1

Write a review

Note: HTML is not translated!
    Bad           Good

ASUS ROG STRIX X570-F GAMING

  • Brands:Asus
  • Product Code: ASUS ROG STRIX X570-F GAMING
  • Availability: In Stock
  • Rs.47,999.00
